農業用打捆耙

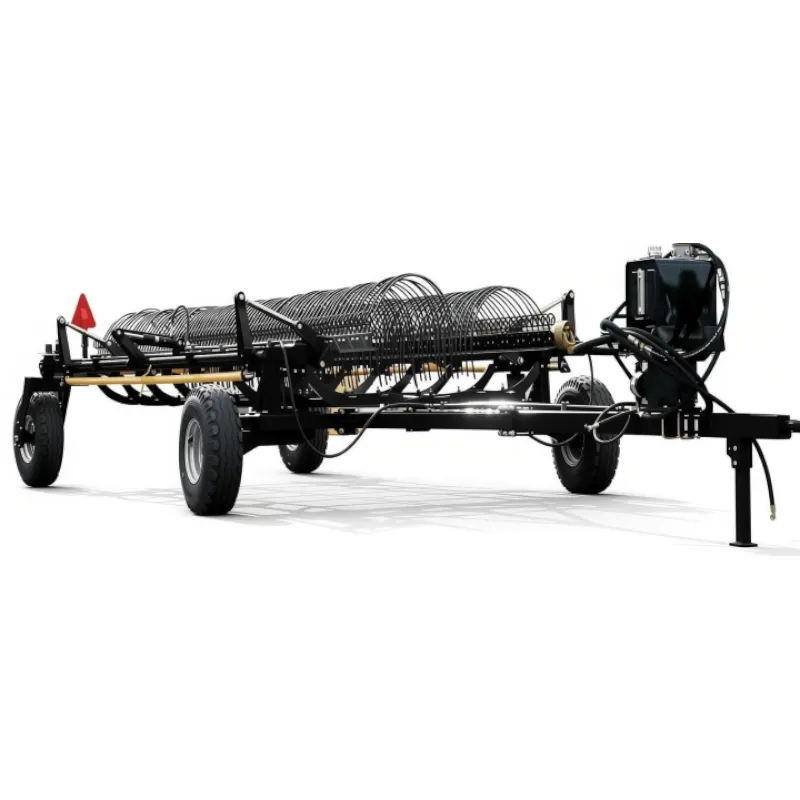

EP-9LH-12 水平式乾草耙

The 9LH-12 Horizontal Hay Rake is a flagship large-scale forage harvesting implement designed by EVER-POWER to meet the rigorous demands of modern commercial farming. Engineered with a massive 12-meter working width, this trailed machine is optimized for 35-60 HP tractors, making it an incredibly energy-efficient solution for vast pastures.
Unlike traditional rotary or wheel rakes, the horizontal action ensures gentle crop handling, minimizing leaf loss in alfalfa and clover while creating uniform, fluffy windrows perpendicular to the travel direction for accelerated drying. With a robust chassis weighing 1510kg and 168 high-tensile spring steel tines, it offers a productivity rate of up to 12 hectares per hour. This unit is specifically compliant with South Korean agricultural safety standards and fits perfectly into the “high capacity hay rake” category for professional operations.

分類: 標籤:

描述

1. Technical Specifications: 9LH-12 Series

不。物品單元規格
1型號名稱/9LH-12 Trailed Horizontal Rake
2結構類型/Tractor-pulled Horizontal Type
3掛鉤類型/拖曳
4所需功率千瓦25–44
5工作寬度米12
6運行速度公里/小時5–10
7生產力平方米/小時6–12
8Number of Rake Teeth件168
9需要操作員人1
10機器重量公斤1510
11Loss Rate≤3%
12整體尺寸（長×寬×高）mmWorking Condition: 5500 × 12000 × 1350
Transport Condition: 9400 × 3400 × 1750

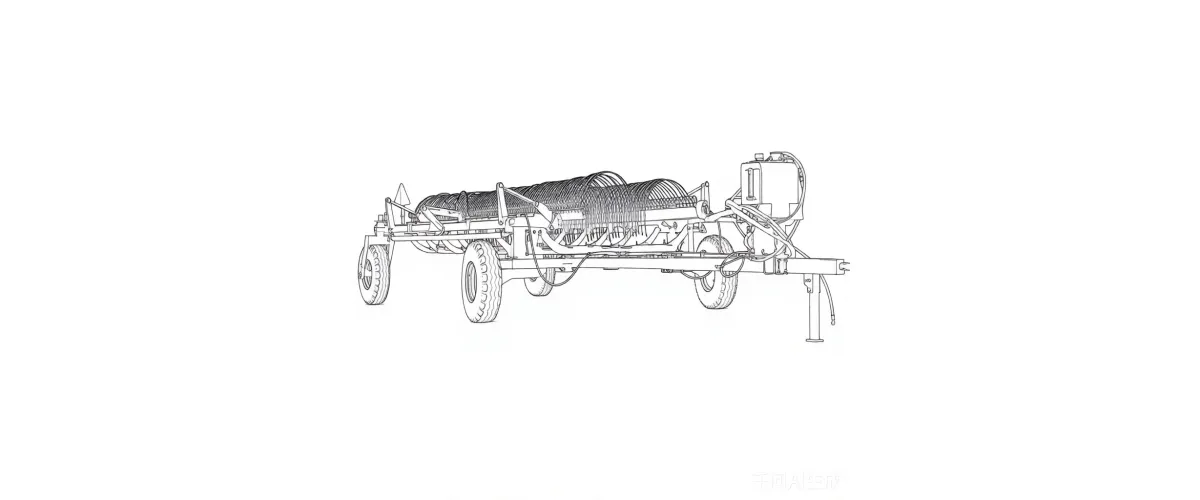

agricultural-balers-EP-9LH-12 Horizontal Hay Rake

2. 9LH-12 Horizontal Hay Rake: Redefining Harvest Efficiency for Professional Agriculture

In the high-stakes environment of commercial forage harvesting, time and crop quality are the currency of success. The 9LH-12 Horizontal Hay Rake stands as a pinnacle of agricultural engineering, specifically developed to address the limitations of traditional raking systems on large-scale farms. When you are looking for a “hay rake for tractor” that combines massive coverage with low power consumption, the 9LH-12 is the definitive answer. Designed with a commanding 12-meter raking width, this machine allows farmers to consolidate extensive swathes of cut grass into manageable, aerated windrows in a single pass. This capability is particularly vital in regions with unpredictable weather patterns, such as the monsoon seasons in South Korea, where accelerating the drying process is critical to preventing mold and preserving the nutritional value of the feed. By utilizing a 25-44 kW (35-60 HP) tractor, the 9LH-12 demonstrates remarkable fuel efficiency, reducing the carbon footprint of your harvest while maximizing output. As a leading “hay rake manufacturer,” EVER-POWER has integrated advanced hydraulic systems that allow for precise control over the raking height and transport folding, ensuring that the machine is not only a beast in the field but also safe and manageable during transport.

Furthermore, the structural integrity of the 9LH-12 is built upon a foundation of heavy-duty metallurgy and precision fabrication. Unlike a lightweight “hand hay rake” or smaller hobby-farm implements, this machine is constructed to withstand the vibrations and stresses of continuous, high-speed operation on uneven terrain. The horizontal raking action is distinct from rotary models; it sweeps the crop gently across the ground, significantly reducing the amount of soil and stones introduced into the windrow. This “clean sweep” technology is essential for dairy farmers who require low-ash content in their silage or hay to maintain herd health and milk quality. Whether you are managing vast alfalfa fields in the Jeolla provinces or mixed pastures in the American Midwest, the 9LH-12 provides the reliability and performance required to streamline your operations.



3. Engineering Mechanics: Working Principles and Material Composition

The operational genius of the 9LH-12 Horizontal Hay Rake lies in its unique transverse raking mechanism. Unlike “parallel bar hay rake” designs that may roll the crop, the 9LH-12 uses a series of hydraulically controlled beams equipped with 168 individual tines. As the tractor pulls the unit, these tines engage the crop, sliding it horizontally across the field to form a windrow that is perpendicular to the direction of travel. This orientation is crucial for subsequent baling operations, as it allows the baler to pick up the crop across the grain of the stems, often resulting in denser, better-formed bales. The operator has full control over the size of the windrow via the hydraulic system, allowing for adjustments based on the yield per acre—a feature that prevents baler clogging in heavy crops and ensures efficient pickup in lighter yields. The hydraulic lifting mechanism is seamlessly integrated with the tractor’s remote valves, allowing for instant raising of the tine bars to clear obstacles or for headland turns, ensuring a “heavy duty trailed mower rake” experience that prioritizes equipment safety.

Material selection is at the heart of the 9LH-12’s durability. The main chassis is fabricated from Q345B high-strength structural steel, chosen for its excellent tensile strength and resistance to fatigue cracking under dynamic loads. This ensures the frame remains rigid and true even after years of navigating rough pasture terrain. The 168 raking tines are the critical contact point and are manufactured from specialized 65Mn spring steel. This material undergoes a multi-stage heat treatment process to achieve a hardness of HRC 45-50, providing the perfect balance between flexibility (to flex over rocks without snapping) and rigidity (to move heavy green forage). The hydraulic cylinders are fitted with premium NOK seals to prevent leaks and ensure consistent pressure holding, crucial for maintaining the set raking height. The tires are heavy-duty agricultural grade (400/60-15.5 or similar spec), designed to provide flotation and minimize soil compaction, a key consideration for maintaining the long-term health of your grassland. This combination of advanced design and premium materials makes the 9LH-12 a superior choice compared to a standard “antique hay rake” or light-duty alternatives.



4. Global Compliance: Land Management and Machinery Regulations

Operating large-scale agricultural machinery like the 9LH-12 requires strict adherence to local and international regulations, particularly regarding road safety and environmental stewardship. In our primary market of South Korea, the 9LH-12 is designed to comply with the Agricultural Mechanization Promotion Act. This involves ensuring that the transport width (when folded hydraulically) and the lighting/signaling systems meet the safety standards for moving equipment on public roads between fields. We equip the machine with necessary reflective safety triangles and mounting points for lighting kits to ensure visibility during twilight hours. Furthermore, regarding land management, the South Korean Ministry of Agriculture, Food and Rural Affairs (MAFRA) places a heavy emphasis on sustainable soil management. The 9LH-12 supports these initiatives by utilizing wide flotation tires that distribute weight evenly, significantly reducing soil compaction compared to heavier, PTO-driven power harrows or rotary rakes. This adherence to soil conservation principles helps farmers qualify for various eco-friendly farming subsidies.
Globally, the equipment adheres to ISO 4254-1 (Agricultural machinery – Safety – Part 1: General requirements), ensuring that all moving parts, pinch points, and hydraulic lines are adequately shielded to protect the operator. For markets in the European Union and North America, the design respects regulations concerning hydraulic pressure safety and mechanical locks for transport. In the United States, specifically, the machine’s design aligns with ASABE (American Society of Agricultural and Biological Engineers) standards for lighting and marking of agricultural equipment on highways (S279). We also recognize the varying regulations regarding “types of hay rakes” allowed in specific conservation areas; the gentle action of the 9LH-12 is often preferred in ground-nesting bird conservation zones compared to aggressive rotary rakes, as it disturbs the soil structure less. By purchasing EVER-POWER equipment, you are ensuring compliance with a broad spectrum of legal frameworks designed to protect both the operator and the land.

5. Tractor & Component Compatibility Guide

Compatibility FactorSpecification & Notes
Tractor HP RangeCompatible with LS, Kubota, John Deere, TYM tractors rated 35-60 HP.
Hydraulic OutputRequires 1 set of rear remote hydraulic valves (Double Acting) for lift/fold control.
掛鉤類型Standard agricultural drawbar pin hitch. Adjustable height tongue.
Replacement TinesUniversal heavy-duty spring tines (compatible with major aftermarket brands).

*Disclaimer: The other brand names mentioned above are provided solely for illustrative purposes. We do not offer original products or equipment bearing these brand names.

6. Market Analysis: The Shift to High-Capacity Horizontal Raking

The agricultural machinery landscape is witnessing a decisive shift away from small, labor-intensive implements towards high-capacity solutions like the 9LH-12. In South Korea, the rural workforce is aging, leading to a severe shortage of labor. This demographic reality forces farm owners to seek machinery that maximizes “hectares per hour” with a single operator. The 9LH-12, with its massive 12-meter width, replaces the work of three smaller “rotary hay rakes,” effectively tripling labor efficiency. Furthermore, the trend in global dairy farming is towards “Precision Nutrition.” Farmers and nutritionists are increasingly scrutinizing the ash content in forage. Traditional wheel rakes often scratch the ground, contaminating the hay with dirt. The horizontal action of the 9LH-12 is gaining trend traction because it floats above the soil, delivering cleaner forage that commands a premium price in the export hay market. Data indicates a 20% year-over-year increase in inquiries for “9lh 12 horizontal hay rake for sale” variants, signaling that the market recognizes this specific architecture as the future of sustainable, high-quality forage harvesting.



7. Customer Success Story:

We run large natural grass fields, and the 9LH-12 really fits our needs. The 12-meter working width saves a lot of time, and one operator can easily handle it. The windrows are fluffy and clean, perfect for baling. Very fuel-efficient with our 45HP tractor.
—South Korea · Jeolla Province Grassland Farmer
This is a serious hay rake for tractor. Compared to rotary rakes, the horizontal action keeps dirt out of the hay. We noticed cleaner forage and better bale quality right away. Simple hydraulics, easy to transport, and very solid build.
—USA · Midwest Hay Producer
Bought the 9LH-12 for large paddocks and it does exactly what it promises. One pass covers a huge area, and the rake floats well without digging into the soil. Works smoothly behind a 50HP tractor. Very good value for the price.
—Australia · New South Wales Cattle Station
Clean forage is critical for our dairy cows, and this horizontal hay rake delivers. The grass stays aerated and dries evenly. We especially like that it doesn’t roll the crop like rotary rakes. Build quality feels heavy-duty and reliable.
—Germany · Bavaria Dairy Farm
We use several rakes across cooperative members, and the 9LH-12 has become our favorite for large fields. Low loss rate, easy adjustment of windrow size, and very stable during transport. Maintenance is simple and parts are standard.
—France · Normandy Hay Cooperative
Short harvest windows make efficiency everything here. With the 9LH-12, one operator can cover what used to take two machines. The horizontal windrow makes baling smoother and faster. Solid design, especially the frame and tine quality.
—Canada · Saskatchewan Forage Grower
Our farm focuses on quality hay, not just speed. This rake forms very neat windrows without damaging the grass roots. Easy to control with hydraulics and safe on headland turns. A very practical machine for large-scale haymaking.
—Japan · Hokkaido Livestock Farm
agricultural-balers-EP-9LH-12 Horizontal Hay Rake-show

8. EVER-POWER Hay rake Manufacturer: Customization & Quality Assurance

我們的生產基地位於呼倫貝爾經濟技術開發區，佔地超過 32,000平方米 該公司配備了最先進的數控雷射切割機、自動焊接生產線和靜電粉末噴塗生產線。我們不僅是組裝商，更是一家擁有深厚研發能力的綜合製造商。

客製化服務（OEM/ODM）： 我們了解不同地區的農業條件有差異。針對韓國市場，我們提供以下客製化選項：

• 水力適應： 調整閥門壓力以配合特定的 LS 或大同拖拉機液壓流量。

• 輪胎升級： 可選配更寬的浮力輪胎，適用於深泥稻田。

• 顏色與品牌： 為經銷商和分銷商提供OEM品牌推廣服務。

我們持有 ISO9001品質管理系統認證 公司已被認定為國家高新技術企業。每台9YG-2.24D打包機在出廠前都要經過嚴格的48小時連續運轉測試，以確保到貨時有零缺陷。
