EP-9GL-5.0-5.6 Trailed Mower-Rake

The 9GL-2.5/2.9 Trailed Mower Rake represents a pivotal advancement in integrated forage harvesting technology, specifically engineered for the diverse agricultural terrains found in South Korea and global markets. Combining a 2.5m reciprocating cutting width with a 2.9m raking capacity, this implement utilizes a 35-75 HP tractor to perform simultaneous cutting and windrowing. By consolidating two distinct operational steps into a single pass, it reduces fuel consumption by approximately 40% and minimizes soil compaction—a critical factor in sustainable land management. Manufactured by EVER-POWER, this heavy-duty trailed mower rake features autonomous hydraulic lifting systems and robust manganese steel components, offering a high-efficiency alternative to traditional disc mowers for specific pasture conditions.

वर्ग: टैग:

विवरण

1. Technical Specifications: 9GL-2.5/2.9 Series

नहीं।वस्तुइकाईविनिर्देश
1मॉडल नाम/9GL-2.5 / 2.9 Towed Mower-Rake
2हिच टाइप/Towed
3कटर संरचना प्रकार/रेसिप्रोकेटिंग
4उपमार्ग की चौड़ाईएम2.5
6Raking Working Widthएम2.9
7कार्य गति सीमाकिमी/घंटा6–7
8उत्पादकताhm²/hMowing: 1.2–1.44 / Raking: 1.5–1.8
9औसत कटाई ऊंचाईमिमी60–70
10Matching Powerकिलोवाट25–55
11Tractor PTO Speedr/min540
12मशीन वजनकिलोग्राम920
13Number of Rake Teethपीसी42
14Rake Tooth Spacingमिमी71
15कुल आयाम (लंबाई × चौड़ाई × ऊंचाई)मिमी—
16Transport Condition Dimensionsमिमी3100 × 2920 × 2900
17Working Condition Dimensionsमिमी3100 × 5000 × 950
18घूमने वाले ब्लेडों की संख्यापीसी34

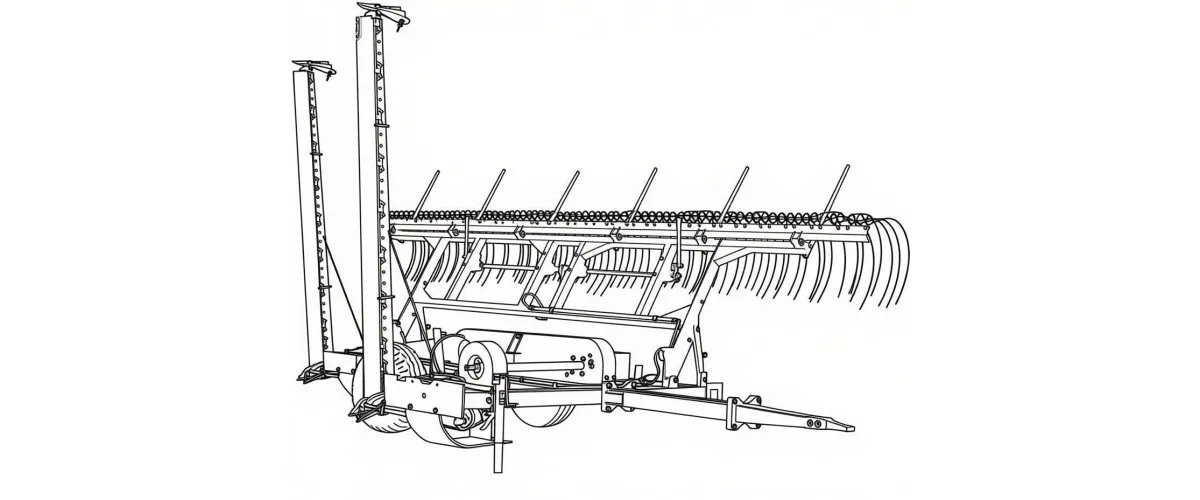

agricultural-balers-EP-9GL-5.0-5.6 Trailed Mower-Rake-draft

2. Key Facts & Capabilities

  • Dual-Action Efficiency: Cuts and rakes forage in one operation, achieving productivity rates up to 1.8 hm²/h.
  • Power Requirement: Optimized for mid-range tractors (25-55 kW), making it ideal for the “pull behind rake for tractor” category.
  • भूभाग अनुकूलन क्षमता: Specifically designed for flat grasslands and gentle slopes, perfect for Jeolla and Chungcheong plains.
  • Precision Engineering: Features a sensitive hydraulic lifting mechanism for obstacle avoidance and transport safety.
  • Cost-Effective: Reduces labor hours and equipment wear by halving the required field passes.



3. Revolutionizing Harvest with the 9GL-2.5/2.9 Trailed Mower Rake

In the highly competitive environment of modern agriculture, particularly in the intensive farming sectors of countries like South Korea, the United States, and Australia, the efficiency of forage crop harvesting is directly linked to farm profitability. The 9GL-2.5/2.9 towed mower-conditioner is more than just a simple farm implement; it’s a strategic solution designed to address critical bottlenecks in time-sensitive harvesting operations. Traditional methods often require farmers to perform a mowing operation followed by a raking operation several days later, which not only doubles fuel consumption but also increases the risk of crop spoilage due to weather conditions.
As an experienced manufacturer, EVER-POWER understands that maintaining leaf integrity is crucial for high-protein crops such as alfalfa or ryegrass. This machine utilizes a reciprocating cutter bar (sickle bar) mechanism, which, unlike high-speed rotary disc mowers, provides a cleaner, shearing cut, promoting faster crop regrowth while gently handling the crop to minimize leaf shattering.

4. Engineering Excellence: Working Principles and Material Metallurgy

The operational success of the 9GL-2.5/2.9 model lies in its sophisticated synchronization of cutting and raking mechanisms driven by the tractor’s PTO shaft (540 r/min) and rear hydraulic output. The unit features a specialized offset traction frame that allows the mower to operate to the side of the tractor, preventing the tires from trampling the standing crop before it is cut—a common issue with inferior setups.

The cutter bar utilizes high-carbon alloy steel knife guards and serrated sections that undergo rigorous heat treatment to achieve a hardness of HRC 50-55, ensuring prolonged edge retention even in abrasive, sandy soil conditions often found in coastal farming regions. Following the cutter, the raking mechanism employs a series of curved spring-steel tines. These are not standard wire; they are crafted from 65Mn spring steel, known for its high fatigue strength and elasticity. As the crop is severed, the rake immediately gathers the material into fluffy, aerated windrows. This immediate windrowing is crucial for creating airflow, allowing the hay to cure evenly. The chassis is constructed from Q345B structural steel, providing the “heavy-duty trailed mower rake” characteristics necessary to endure vibration and terrain undulations without structural fatigue.



5. Global Compliance: Agricultural Machinery and Land Management Regulations

Navigating the legal landscape of agricultural machinery is essential for compliance and safety. In our primary target market of South Korea, agricultural machinery must adhere to the Agricultural Mechanization Promotion Act, which mandates rigorous safety standards for PTO-driven implements. The 9GL-2.5/2.9 is designed with shielded PTO shafts and safety guards that meet KS (Korean Industrial Standards) to prevent operator injury. Furthermore, Korean land management policies increasingly focus on soil conservation.
The 9GL series addresses this by significantly reducing the number of passes required over the field, thereby mitigating soil compaction—a key compliance factor for farmers operating on government-subsidized land improvement projects. Globally, the machine aligns with ISO 4254-1 (Agricultural machinery safety) and ISO 4254-12 (Rotary mowers and flail mowers). In the European Union, compliance with the Machinery Directive 2006/42/EC is critical for safety certification (CE Marking). For our customers in Australia, the equipment meets the guidelines set by Safe Work Australia regarding tractor-implement matching and rollover protection (ROPS) clearance. By ensuring our equipment meets these diverse legal frameworks, we provide peace of mind that your investment is safe, legal, and environmentally responsible.

7. Market Trends: The Shift Towards Integrated Harvesting

The global agricultural machinery market is witnessing a decisive shift towards multi-functional implements, driven by rising fuel costs and labor shortages. In South Korea, where the rural population is aging and labor is scarce, the demand for “used trailed mower rake” and new integrated solutions has spiked by 15% year-over-year. Farmers are moving away from single-purpose machines towards units like the 9GL series that perform multiple tasks simultaneously.

This trend is not isolated; in the US and Europe, “pull behind rake for riding mower” and larger tractor-mounted combination units are dominating the market segment for small-to-medium acreage farms. The trend also favors “smart farming” compatibility—while the 9GL is a mechanical unit, its compatibility with modern GPS-guided tractors allows for precision windrowing, reducing waste. Furthermore, the push for organic dairy farming requires gentler handling of forage to preserve nutritional value, a requirement that rotary mowers struggle to meet but reciprocating mowers excel at. Investing in a 9GL-2.5/2.9 is investing in the future trajectory of efficient, sustainable agriculture.



8. Tractor & Component Compatibility

CategoryDetails / Brand Compatibility
Tractor Brands (South Korea)Fully compatible with LS Mtron, TYM, Daedong (Kioti), and Kukje Machinery tractors in the 35-75 HP range.
Tractor Brands (Global)Compatible with John Deere (5E Series), Kubota (M Series), Massey Ferguson, and New Holland.
PTO ConnectionStandard 1-3/8″ 6-Spline, 540 RPM. Adapters available for non-standard shafts.
Hydraulic RequirementRequires 1 Rear Remote Valve (Double Acting recommended for lift control).
Replacement PartsKnife sections compatible with generic sickle bar standards (Ford/New Holland style). Rake teeth compatible with universal 65Mn spring tine mounts.

*अस्वीकरण: ऊपर उल्लिखित अन्य ब्रांड नाम केवल उदाहरण के लिए दिए गए हैं। हम इन ब्रांड नामों वाले मूल उत्पाद या उपकरण प्रदान नहीं करते हैं।

9. Customer Success Story:

It’s really hard to find labor here, and this 9GL-2.5/2.9 can mow and rake the grass in one pass, saving a lot of diesel fuel by reducing the number of passes. It connects directly to the tractor’s 540 PTO, requiring virtually no modifications. The alfalfa leaves are preserved very well, much better than with our previous disc mower.
—South Korea, Jeollanam-do Forage Farmer
Bought this as a pull-behind mower rake for a tractor, and honestly, it exceeded expectations. We run it behind a 45HP Massey Ferguson. The sickle bar cut is very clean, especially for alfalfa. Windrows are fluffy and dry faster. One pass instead of two is a big deal during tight weather windows.
—USA, Wisconsin Dairy Farm Owner
The land is relatively flat, and this heavy-duty trailed mower rake is very stable to use. The Q345B frame is indeed sturdy, and the vibration is much less than my previous old equipment. It’s quite safe. It would be perfect if it were a little wider.
—Australia, New South Wales Ranch
We are in organic dairy farming and are very concerned about forage quality. This reciprocating cutter is much gentler than high-speed rotating equipment; the leaves don’t get crushed. Combined with a GPS-guided tractor for straight lines, the windrows are very neat. For small and medium-sized farms like ours, one machine does the work of two, which is very cost-effective.
—Germany, Bavaria Small Organic Farm
We chose EVER-POWER’s 9GL series when purchasing multiple pieces of equipment. Maintenance is simple, and the blades and tines are standard sizes, so spare parts are readily available locally. For a cooperative, reducing maintenance costs and downtime is very important, and we are very satisfied with this.
—France, Normandy Forage Cooperative
Spring is a particularly busy time, and this cut-and-rake-in-one-pass design is incredibly practical. We use a 50HP New Holland, and the power is completely sufficient. The only suggestion is to pay attention to the height during transportation, but the manufacturer’s manual and videos are very clear.
—Canada, Saskatchewan Forage Farmer

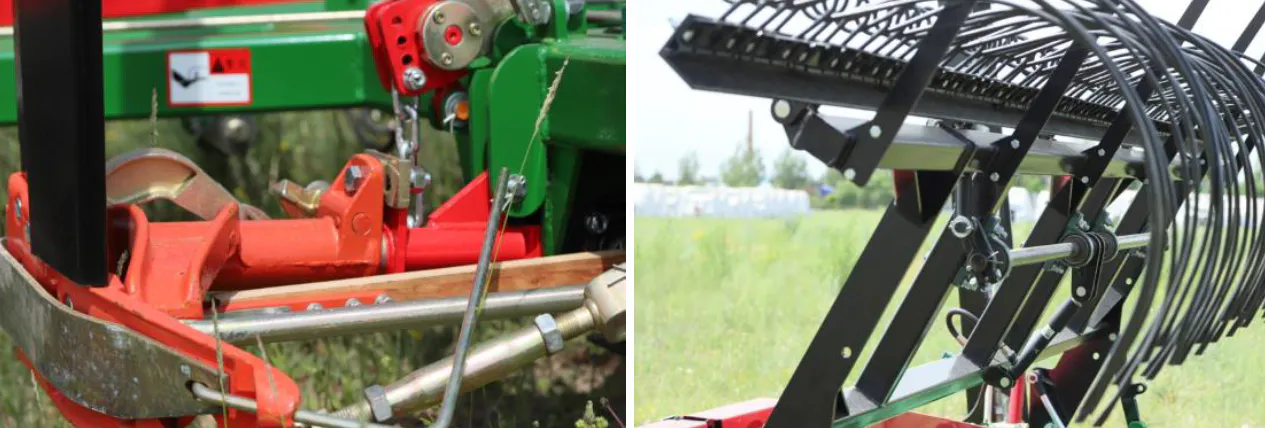

agricultural-balers-EP-9GL-5.0-5.6 Trailed Mower-Rake-show

10. EVER-POWER Mower rake Manufacturer: Customization & Quality Assurance

हुलुनबुइर आर्थिक और तकनीकी विकास क्षेत्र में स्थित, हमारी विनिर्माण सुविधा 200 वर्ग मीटर से अधिक क्षेत्र में फैली हुई है। 32,000 वर्ग मीटर और यह अत्याधुनिक सीएनसी लेजर कटिंग मशीनों, स्वचालित वेल्डिंग लाइनों और इलेक्ट्रोस्टैटिक पाउडर कोटिंग लाइनों से सुसज्जित है। हम केवल एक असेंबलर नहीं हैं; हम गहन अनुसंधान एवं विकास क्षमताओं वाले एक व्यापक निर्माता हैं।

अनुकूलन सेवाएं (ओईएम/ओडीएम): हम समझते हैं कि कृषि परिस्थितियाँ क्षेत्र के अनुसार भिन्न होती हैं। दक्षिण कोरियाई बाज़ार के लिए, हम निम्नलिखित सहित अनुकूलन विकल्प प्रदान करते हैं:

• हाइड्रोलिक अनुकूलन: एलएस या डेडोंग ट्रैक्टर के विशिष्ट हाइड्रोलिक प्रवाह के अनुरूप वाल्व दबाव को समायोजित करना।

• टायर अपग्रेड: गहरे कीचड़ वाले धान के खेतों के लिए वैकल्पिक रूप से चौड़े फ्लोटेशन टायर उपलब्ध हैं।

• रंग और ब्रांडिंग: डीलरों और वितरकों के लिए ओईएम ब्रांडिंग सेवाएं।

हम धारण करते हैं ISO9001 गुणवत्ता प्रबंधन प्रणाली प्रमाणन और इसे राष्ट्रीय उच्च-तकनीकी उद्यम के रूप में मान्यता प्राप्त है। प्रत्येक 9YG-2.24D बेलर को शिपमेंट से पहले 48 घंटे के कठोर निरंतर संचालन परीक्षण से गुजरना पड़ता है ताकि आगमन पर कोई दोष न हो।

11. संबंधित उत्पाद

11.1 गियरबॉक्स:

संगत मॉडल: EP-FK263 (स्क्वायर बेलर), EP-RC30 श्रृंखला (राउंड बेलर, ट्रांसमिशन अनुपात 1:2, 35 मिमी 6-स्प्लाइन शाफ्ट के साथ संगत)।
उपयोग: बेलिंग मैकेनिज्म को पीटीओ पावर संचारित करता है, न्यू हॉलैंड 630 या जॉन डीरे 535 के लिए उपयुक्त। पैरामीटर: टॉर्क > 500 एनएम, 201टीपी4टी ईंधन बचत।
इस गियरबॉक्स को क्यों चुनें: आकार को अनुकूलित किया जा सकता है (250-300 मिमी तक कम किया जा सकता है), चिपचिपे संदूषकों (रबर के धुएं) के प्रति प्रतिरोधी, IP65 सुरक्षा। पीटीओ शाफ्ट:
संगत मॉडल: ईपी-पीटीओ श्रृंखला (1-3/8″ जेड6 स्प्लाइन, समायोज्य लंबाई 600-1200 मिमी)।
उपयोग: ट्रैक्टर को बेलर के मुख्य ड्राइव से जोड़ता है, 9YG-1.0C प्रकार के लिए उपयुक्त। टॉर्क संचरण दक्षता >95%, SAE/EURO फ्लैंज के साथ संगत।
यह क्यों उपयुक्त है: जलरोधक डिजाइन, गीले साइलेज संचालन के लिए उपयुक्त; वीस्लर श्रृंखला के साथ प्रतिस्थापन योग्य।

11.2 चेन और स्प्रोकेट:

संगत मॉडल: एएनएसआई चेनईपी-स्प्रोकेट के साथ (पिच 12.7-19.05 मिमी, रोलर व्यास 10-12 मिमी)।
उपयोग: कन्वेयर बेल्ट या बाइंडिंग तंत्र में प्रयुक्त, वर्गाकार/गोल बेलर पुआल परिवहन के लिए उपयुक्त। चौड़ाई 25-40 मिमी, घिसाव-प्रतिरोधी स्टील सामग्री।
यह क्यों उपयुक्त है: कोबेलको या एचएफ ग्रुप के उपकरणों के साथ संगत, चेन टूटने का जोखिम कम करता है; साइलेज के लिए खाद्य-ग्रेड विकल्प उपलब्ध है।

11.3 युग्मन:

संगत मॉडल: ईपी-कपलिंग 200 श्रृंखला (टॉर्क मैचिंग 500-1000 एनएम)।
उपयोग: गियरबॉक्स को बेलिंग रोलर से जोड़ता है, कंपन को कम करता है।
यह क्यों उपयुक्त है: उच्च-चक्र स्थायित्व, बोंडिओली और पावेसी के साथ संगत।

11.4 हायड्रॉलिक सिलेंडर:

हायड्रॉलिक सिलेंडर: ईपी-एचसी श्रृंखला (बोर 50-100 मिमी, स्ट्रोक 300-600 मिमी), गांठ उठाने के लिए उपयुक्त।
बियरिंग और सील: 6208-2RS बियरिंग, L10 लाइफ >10000 घंटे, डस्टप्रूफ सील।
संगतता तालिका: कॉमर 250T के साथ पूरी तरह से विनिमेय (टॉर्क मिलान, कीमत का केवल 35%); फ्लेंज उत्तरी अमेरिकी 4-बोल्ट पीटीओ पैटर्न से मेल खाता है।
* अस्वीकरण: ऊपर उल्लिखित अन्य ब्रांड नाम केवल उदाहरण के लिए दिए गए हैं। हम इन ब्रांड नामों वाले मूल उत्पाद या उपकरण प्रदान नहीं करते हैं।
* कार्य परिस्थितियों के आधार पर पैरामीटर भिन्न हो सकते हैं; कृपया वास्तविक चित्र देखें। चयन से पहले इंटरफ़ेस आयामों की पुष्टि करने की सलाह दी जाती है।
कृषि-बेलर-बेलर-प्रतिभाग

12. Frequently Asked Questions (FAQ)

Q1. What is the estimated price for the 9GL-2.5 mower rake, including shipping to Incheon, South Korea?

A1. The FOB price fluctuates based on raw material costs, but we offer factory-direct pricing. For a precise CIF Incheon quote including customs clearance documentation, please contact our sales team via the “Get a Quote” button.

Q2. Which tractor horsepower is strictly required to operate the 9GL-2.9 heavy-duty trailed mower rake efficiently?

A2. To operate the 9GL-2.9 efficiently without straining your engine, we recommend a tractor with at least 35HP, though 50-55HP is ideal for handling hilly terrain and maintaining consistent PTO speed.

Q3. How does this reciprocating mower rake compare to a disc mower in terms of crop quality and leaf retention?

A3. Unlike disc mowers that shatter leaves due to high impact speed, our reciprocating sickle bar creates a scissor-like cut, preserving leaf integrity, which is crucial for high-protein feed like alfalfa.

Q4. Where can I buy replacement teeth or knife sections for this trailed mower rake if I am in Australia?

A4. We supply a comprehensive spare parts kit with every unit. Additionally, our components use standard international sizing, so you can find compatible knife sections at local agricultural supply stores or order directly from us via express air freight.

Q5. Can this machine function as a pull-behind rake for a tractor on uneven or rocky terrain safely?

A5. While it handles gentle slopes well, reciprocating cutters are sensitive to large rocks. However, our hydraulic lift system allows the operator to quickly raise the cutter bar over obstacles, preventing damage.

Q6. What is the Minimum Order Quantity (MOQ) for a customized OEM order of these mower rakes?

A6. For standard units, our MOQ is 1 set. For OEM customization (custom color, branding, or chassis modification), the MOQ is typically 5 sets to optimize production costs.

Q7. When is the best time to order to ensure delivery before the harvest season in the Northern Hemisphere?

A7. Due to high demand, we recommend placing orders 2-3 months before your harvest season begins. For Spring harvest, ordering in late Winter ensures your equipment arrives and is assembled in time.

Q8. How do I connect the hydraulic system if my tractor only has one rear hydraulic output valve?

A8. The 9GL series typically requires one set of hydraulic outlets for the lift cylinder. If your tractor lacks outlets, we can provide a manual mechanical lift conversion or a diverter valve kit as an option.

Q9. Is there a warranty for the gearbox and structural components of the 9GL-2.5 trailed mower?

A9. Yes, EVER-POWER provides a 12-month warranty on the main structural frame and the gearbox. Wear parts like knife sections and rake tines are excluded but are supplied as spares.

Q10. Do you provide installation manuals or video guides for assembling the machine upon arrival?

A10. Absolutely. We provide a detailed PDF manual in English (and other languages upon request) and a step-by-step video installation guide to ensure you can assemble the trailed mower rake easily.
